LiFePO4 home storage engineered for the Abundance Pro stack: one intelligent 9 kWh-class module, up to six in parallel with the Sigen Hybrid inverter — backup-ready, tropical-grade, whisper-quiet operation.
Abundance Pro combines Eclipse PV, SunMax optimizers, and a Sigen Hybrid inverter with certified BAT 9.0 storage. The short section below shows—in plain terms—how towers add kWh before you read dimensions and electrical limits in Technical specifications.
Designed for the Abundance Pro stack with Sigen Hybrid: day–night cycling, quiet Type 4X housing, and certified scaling. The tower illustration and nominal kWh grid appear first, followed by three benefit highlights—then open Technical specifications for full electrical and physical data.
Capture excess solar energy during the day and use it at night. Reduce grid dependency and maximise your solar investment around the clock.
Sigenergy certifies up to six BAT 9.0 modules per tower with the hybrid inverter specified on your Sunollo quote. The grid in this section lists nominal totals so designers can compare tower sizes at a glance.

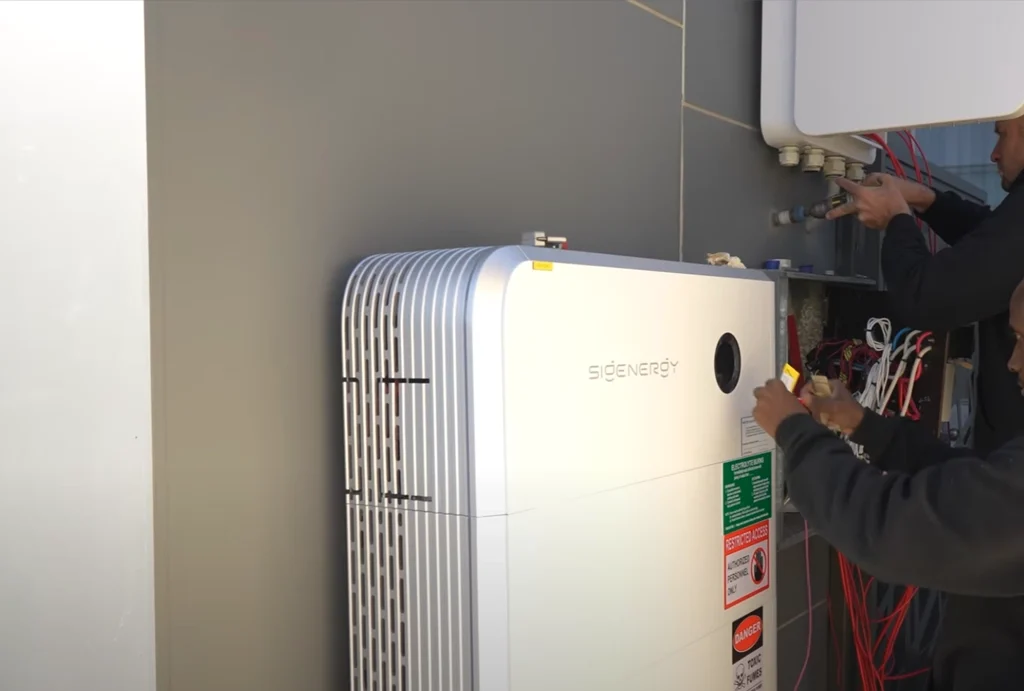

Natural convection cooling and a Type 4X (NEMA) enclosure keep the pack whisper-quiet. Floor-standing or wall-mounted — follow local codes and Sigenergy install guidance for clearances.

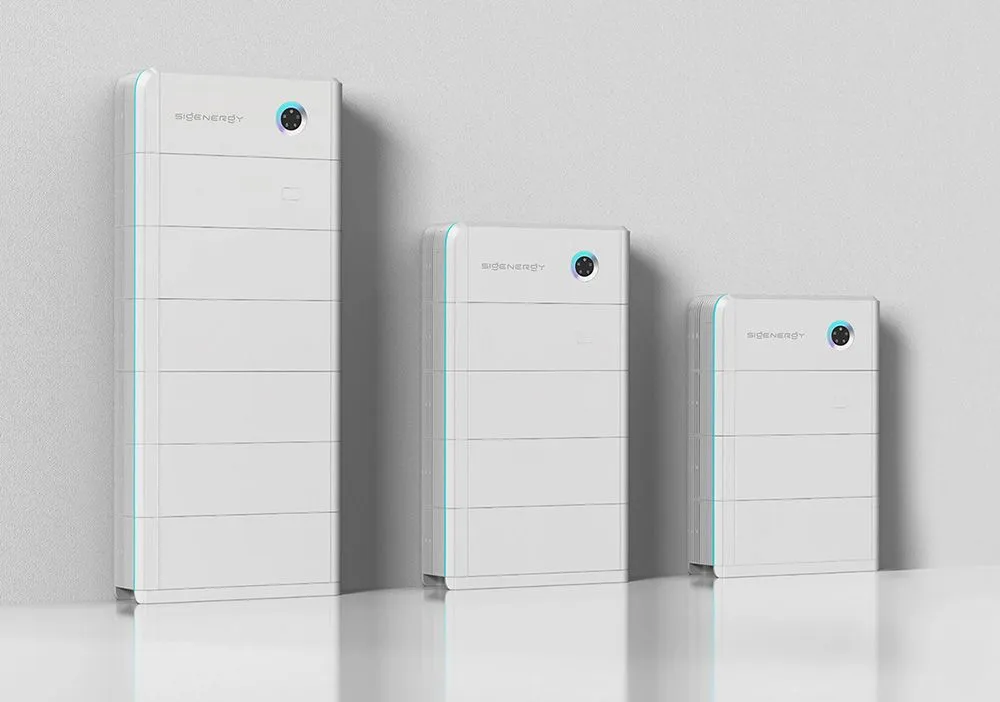

Stackable towers (BAT 9.0 US). Each column is one battery control unit (BCU) over a vertical stack of 1–6 identical SigenStor battery modules. Cabinet width and per-module height stay the same as modules are added; only stored energy scales. Per module: 767 × 270 × 265 mm (W × H × D); 9.04 kWh total energy; 8.76 kWh usable at 100% depth of discharge. Nominal system total energy = module count × 9.04 kWh (for example, 6 modules = 54.24 kWh nominal total). Usable system total = module count × 8.76 kWh (6 modules = 52.56 kWh usable). Reference artwork labeled for an 8.06 kWh-class pack uses the same outline and module height for BAT 9.0 — use the values here for energy.
SigenStor BAT 9.0 is the Abundance Pro storage module — orchestrated by the Sigen Hybrid inverter for solar, battery, and grid in one experience.
Eclipse panels, SunMax optimizers, Sigen Hybrid inverter, and up to six BAT 9.0 modules — engineered as one Abundance Pro system. From $16,000.
Explore Abundance Pro →The Sigen Hybrid inverter inside Abundance Energy Hub manages PV, battery strings, backup, and grid import/export with integrated BMS logic for SigenStor.
View Abundance Energy Hub →Charge your electric vehicle with stored solar energy for cost-effective, clean driving.
View EV Charger Specs →Add SigenStor BAT 9.0 storage to your Abundance Pro design. Sunollo engineers size packs to your load profile — request a personalised quote.
