Solar Panels

Eclipse Solar Panels

540W of refined power, featuring AIKO's N-Type ABC back-contact cell technology. Developed in partnership with AIKO Solar to deliver industry-leading efficiency for Singapore homes.

25-Year Product Warranty · 30-Year Performance Warranty
Radiance
Abundance
Abundance Pro

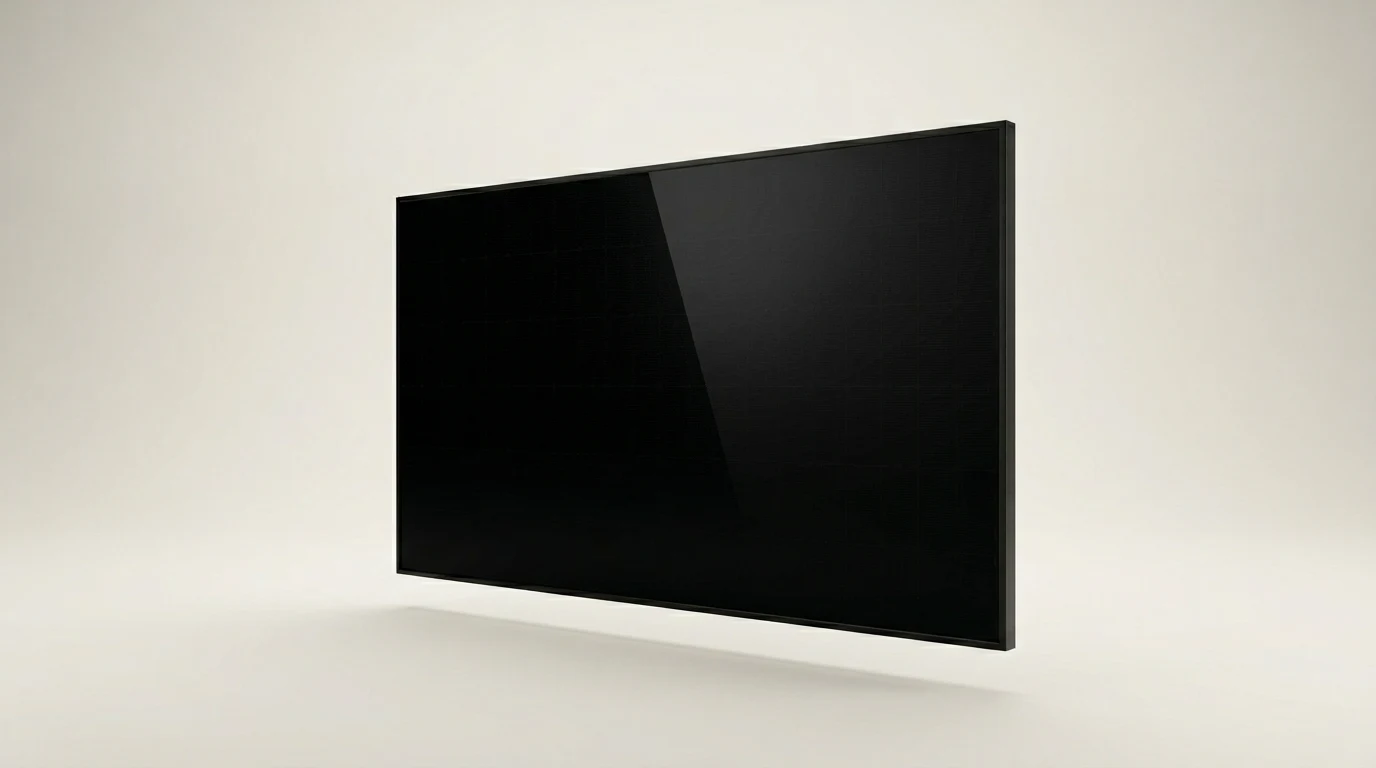

PHOTO: AIKO Neostar 3S60 (A540-MCE60Mb) panel — all-black, N-Type ABC, angled view, white background (800×400)
540W
Peak Power Output
24.4%
Module Efficiency
28kWh
Energy per m² per month
<0.26%/°C
Temperature Coefficient
PHOTO: Eclipse 540W panels on Singapore rooftop — aerial/lifestyle showing all-black aesthetic, tropical setting (1400×480)

Why Eclipse Panels

Powered by AIKO's award-winning N-Type ABC back-contact cell technology, purpose-built for Singapore's tropical climate and urban rooftops.

PHOTO: Partial shade on roof with panel still producing

Partial Shade Optimised

AIKO's N-Type ABC back-contact cells maintain high output even under partial shade from trees or buildings. Each cell operates independently, so one shaded area doesn't drag down the whole panel.

PHOTO: Panel in tropical heat / temperature performance

Heat Resistant Performance

With a temperature coefficient of just -0.26%/°C, Eclipse panels retain more output in Singapore's tropical heat. At 70°C roof temperatures, they still deliver strong, reliable performance.

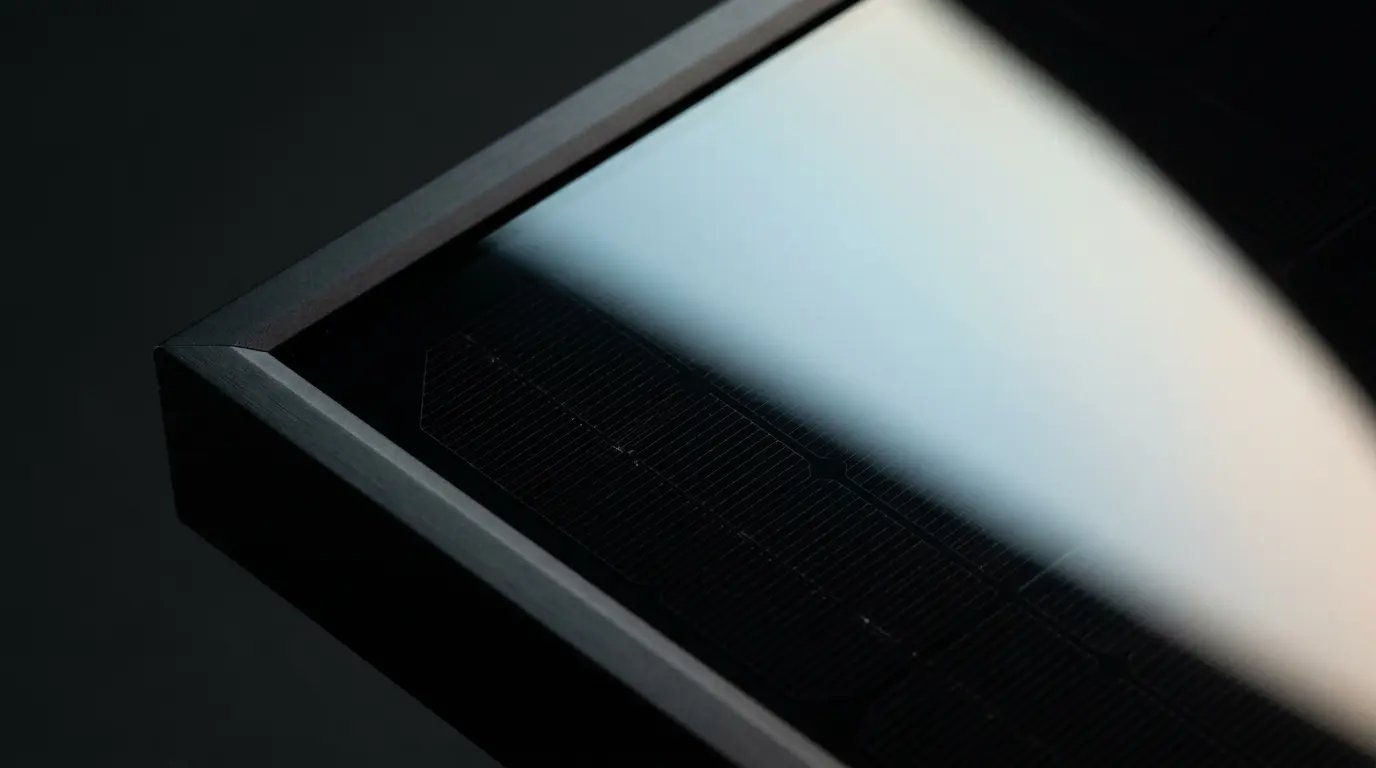

PHOTO: Close-up of all-black panel surface / no busbars

All-Black, Zero Busbar

AIKO's back-contact cell architecture eliminates visible busbars entirely. The result: a seamless all-black surface with a black anodized aluminium frame that complements any roofline.

Technical Specifications

Electrical Performance

Peak Power (Pmax)
540 Wp
Module Efficiency
24.4%
Cell Type
N-Type ABC Back-Contact
Cell Count
120 cells
Max System Voltage
DC 1500V
Temperature Coefficient (Pmax)
-0.26%/°C
Energy per m² per month
28 kWh
Open Circuit Voltage (Voc)
45.60 V
Max Power Voltage (Vmp)
38.40 V
Short Circuit Current (Isc)
14.84 A
Max Power Current (Imp)
14.07 A
Temperature Coefficient (Isc)
+0.05%/°C
Temperature Coefficient (Voc)
-0.22%/°C
Power Binning Tolerance
0~+3%

Physical

Dimensions
1134 mm × 1954 mm
Weight
23.2 kg
Frame
Black Anodised Aluminium
Front Glass
3.2 mm Tempered Glass
Backsheet
High Weather Resistant Backsheet
Junction Box
IP68, 3 Bypass Diodes
Connector
Stäubli MC4 EVO2
Cable
4mm² (IEC) / 12 AWG (UL), ±1200mm
Thickness
30 mm

Mechanical & Safety

Max Static Loading (Front)
+5,400 Pa
Max Static Loading (Back)
-2,400 Pa
Hail Test
35 mm Ø at 27.2 m/s
Fire Rating
IEC Class C
Operating Temperature
-40°C to +70°C
T98 Max
70°C
Max Series Fuse Rating
25 A
Protection Class
Class II

Durability & Warranty

Degradation (Year 1)
<1%
Annual Degradation (Year 2–30)
<0.35%
Product Warranty
25 years
Linear Performance Warranty
30 years
Guaranteed Output at Year 30
88.85% of rated power

Part of Every Sunollo Solution

Eclipse Solar Panels power all three Sunollo home solutions. See which system is right for you.

Radiance

Quality panels and professional installation for maximum long-term savings. Starting from $14,500.

Explore Radiance →

Abundance

Premium panels with smart inverter and panel-level monitoring for dependable performance. Starting from $15,000.

Explore Abundance →

Abundance Pro

The most advanced system with SunMax optimizers, EnergyHub inverter, battery and EV options. Starting from $16,000.

Explore Abundance Pro →

Downloads

Download AIKO Neostar 3S60 Datasheet (PDF)

Ready to harness the sun?

Get a personalised quote for your home with Eclipse 540W Solar Panels. Featuring AIKO technology, backed by a 30-year performance warranty.

Get Your Free Quote
