Power Optimizer

SunMax Power Optimizer

600W panel-level optimization with 99.5% peak efficiency. Featuring Sungrow's Shade-Proof technology and rapid shutdown safety, developed in partnership with Sungrow to maximise every panel on your roof.

25-Year Warranty
Abundance
Abundance Pro

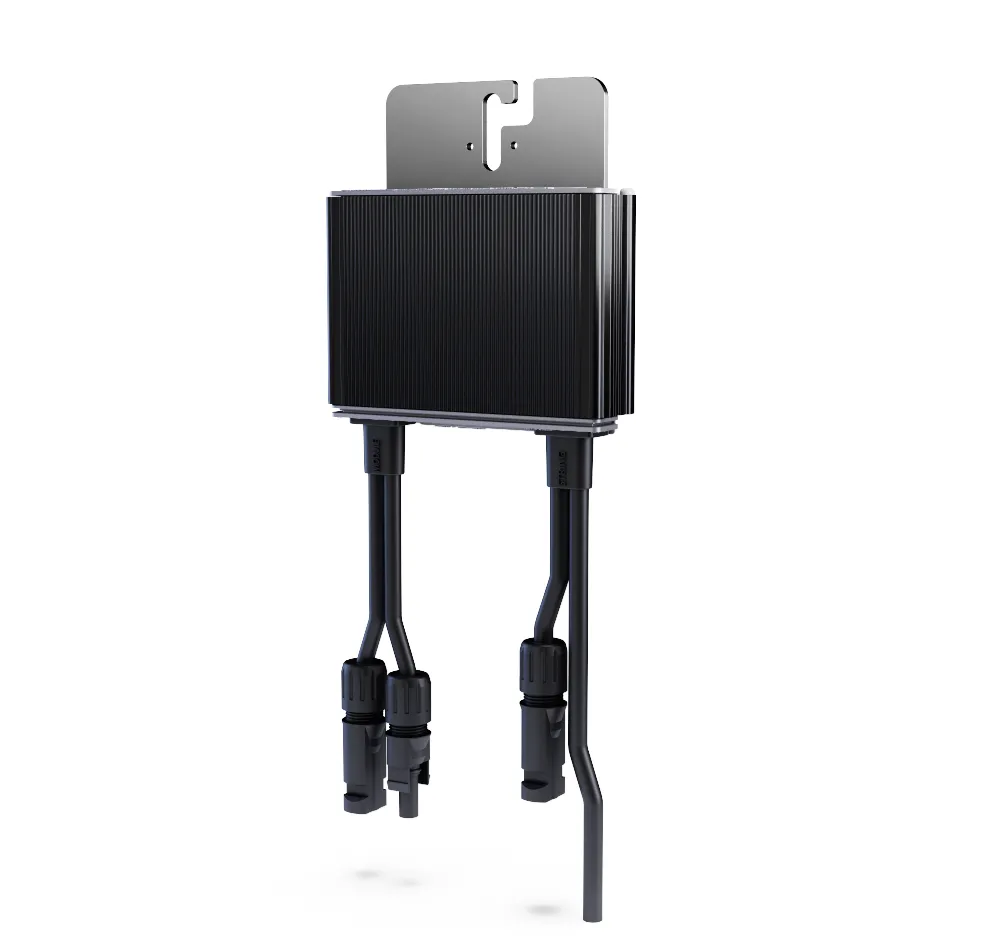

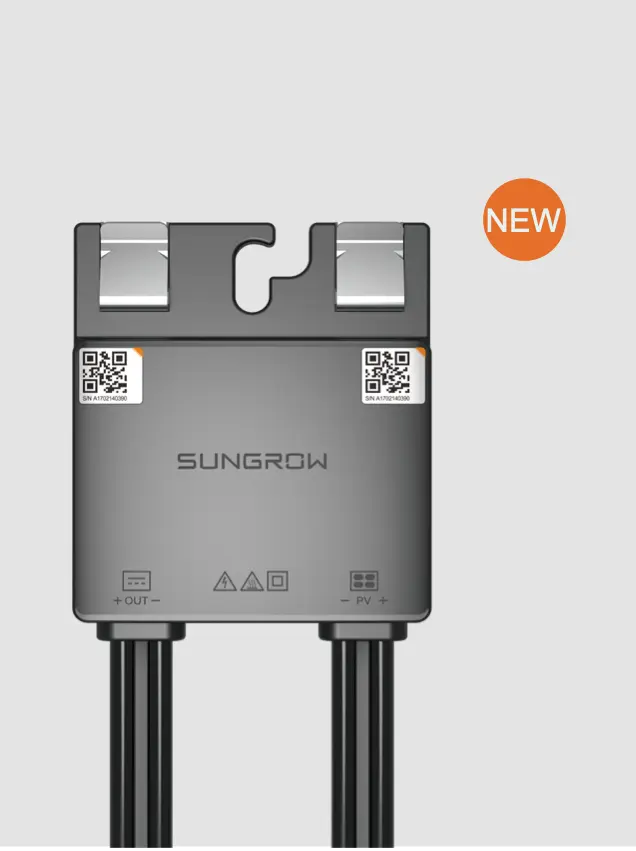

PHOTO: Sungrow SP600S optimizer unit — compact black device with MC4 connectors (800×400)
99.5%
Maximum Efficiency
99.0%
Weighted Efficiency
30%
More Power Generation
IP68
Protection Rating

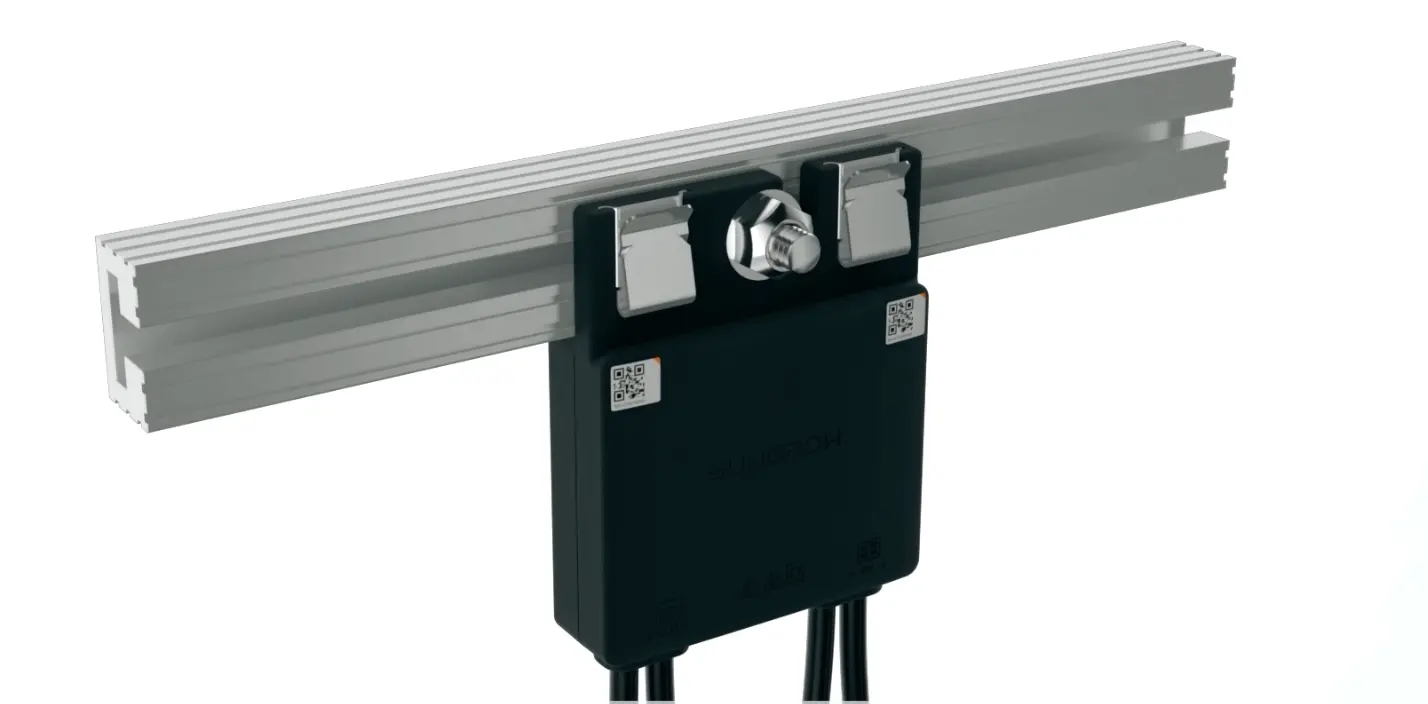

PHOTO: SP600S optimizer mounted behind Eclipse panel on roof rail — push-in installation (1400×480)

Why SunMax Optimizers

Developed in partnership with Sungrow — each optimizer ensures every panel performs at its peak independently.

PHOTO: Shaded vs unshaded panel — Shade-Proof technology comparison

Shade-Proof Technology

Sungrow’s Shade-Proof technology overcomes potential losses at the module level. When one panel is shaded, the rest continue at full output — delivering up to 30% more power generation compared to non-optimized systems.

PHOTO: Rapid shutdown safety — 1V per optimizer, IP68 rated

Rapid Shutdown Safety

Shuts down to just 1V per optimizer (30V system-wide) within 20 seconds. IP68 waterproofing and C5 anti-corrosion rating ensure reliable safety in Singapore’s humid, tropical climate.

PHOTO: Module-level IV scanning diagnostics / iSolarCloud app

Module-Level Diagnostics

IV scanning and real-time diagnostics at every panel, with data refreshing every 10 seconds. Instantly identify underperformance and keep your system running at peak capacity.

Technical Specifications

Electrical

Recommended Input Power
450–695 W
Max Input Voltage (Voc)
80 V
Maximum Output Current
16 A
Maximum Output Voltage
80 Vdc
Maximum Efficiency
99.5%
Weighted Efficiency
99.0%
Rated Output Power
600 W
MPPT Voltage Range
8–80 V
Max DC Short-Circuit Current (Isc)
20 A
Bypass Working Mode
Yes
Safety Output Voltage (per optimizer)
1 V

Physical

Dimensions (W × L × H)
86 × 108 × 25 mm
Weight
0.5 kg
Protection Rating
IP68, C5 Anti-Corrosion
Safety Compliance
IEC62109-1 (Class II), IEC61000-6-2, IEC61000-6-3
Operating Temperature
-40 to +85°C
PV Connector
MC4 or MC4 Compatible
Mounting Method
Push-in or Bolt Installation
Communication
PLC (< 350 m)
Allowable Humidity
0–100% (non-condensing)
Max Operating Altitude
4,000 m

Part of Abundance & Abundance Pro

The SP600S optimizer pairs with Eclipse panels and your inverter for maximum energy harvest.

Abundance

Eclipse panels + SunMax optimizers + Smart Inverter for dependable performance. From $15,000.

Explore Abundance →

Abundance Pro

The most advanced system with EnergyHub inverter, battery and EV options. From $16,000.

Explore Abundance Pro →

Eclipse Solar Panels

540W all-black N-Type ABC panels — the power source each optimizer maximises.

View Panel Specs →

Downloads

Download Sungrow SP600S Datasheet (PDF)
